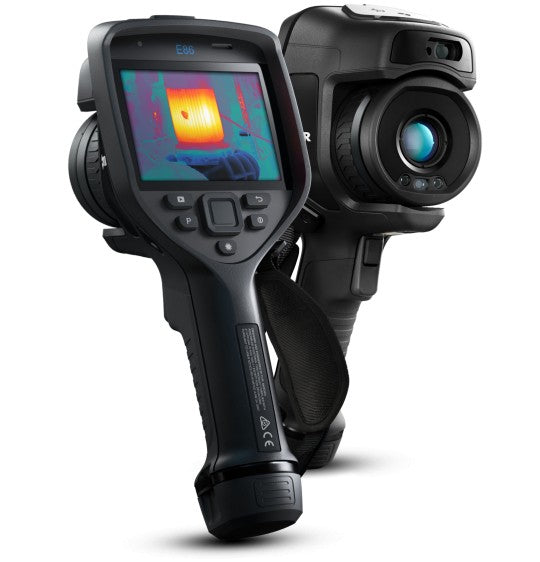

FLIR E86 Advanced Thermal Camera
Choice of lenses available.
The FLIR E86 is packed with the high-performance features needed for fast, accurate detection of hot spots and hidden deficiencies. This 464 ×348 pixel thermal camera has an expanded temperature measurement range for easier detection of hot spots and hidden anomalies on electrical and mechanical assets.
Choice of lenses available.
FLIR E86 Details
The FLIR E86 is packed with the high-performance features needed for fast, accurate detection of hot spots and hidden deficiencies. This 464 ×348 pixel thermal camera has an expanded temperature measurement range for easier detection of hot spots and hidden anomalies on electrical and mechanical assets.
Interchangeable AutoCal™ lenses offer complete coverage of near and distant targets, while FLIR imaging technology such as UltraMax® and MSX® ensure crisp, vibrant thermal images.
The onboard FLIR Inspection Route runs pre-planned routes to help you stay organized when surveying large or multiple locations. FLIR Ignite provides automatic uploading of E86 images directly from the camera to the cloud for easy, secure storage and sharing.
IR resolution | 464 × 348 pixels |
Resolution with UltraMax® enhancement |
645,888 pixels |
MSX® image enhancement | Yes: details from visual camera add depth and perspective |
Built-in visual camera | 5 MP, fixed focus, with built-in LED light |
Thermal sensitivity | <30 mK @ 30°C (86°F), 42° lens |
Temperature range | -20°C to 120°C (-4°F to 248°F); 0°C to 650°C (32°F to 1202°F); 300°C to 1500°C (572°F to 2732°F) |
Optional temperature range | - |
Accuracy | ±2°C (±3.6°F) or ±2% of the reading |
Focus modes | Continuous LDM, one-shot LDM, one-shot contrast, manual |
Digital zoom |
1–4x continuous |
Measurement tools |
3 spotmeters in live mode, 3 area meters in live mode |
Measurement presets |
None, center spot, hot spot, cold spot, User Presets 1&2 |
Available lenses |
14°, 24°, 42°, macro (2x) |
Lens identification |
Automatic (FLIR AutoCalTM) |
1-Touch Level/Span |
Yes: automatic contrast enhancement |
Laser pointer | Yes |
Laser distance meter |
Yes |
Area measurement information |
Yes |
On-camera routing software |
FLIR Inspection RouteTM — enabled |
On-camera report building | Voice annotation and GPS tagging to images and video; on-screen text; sketch on infrared images from touchscreen |
FLIR software integration | FLIR Thermal Studio Starter, FLIR Thermal Studio, FLIR Thermal Studio Pro, FLIR Research Studio |
Radiometric JPEG | Yes |
IR, radiometric, visual video recording | Yes |
IR, radiometric, visual video streaming | Yes, over UVC (radiometric, non-radiometric, visual) and Wi-Fi (non-radiometric, visual) |
Communication modes | USB 2.0, Bluetooth®, Wi-Fi, DisplayPort |
METERLiNK® | Yes |
Display | 640 × 480 pixels (VGA) Dragontrail® touchscreen |
Drop-testing | 3 m (6.6 ft) |
Battery operation time | >2.5 hours, typical use |
