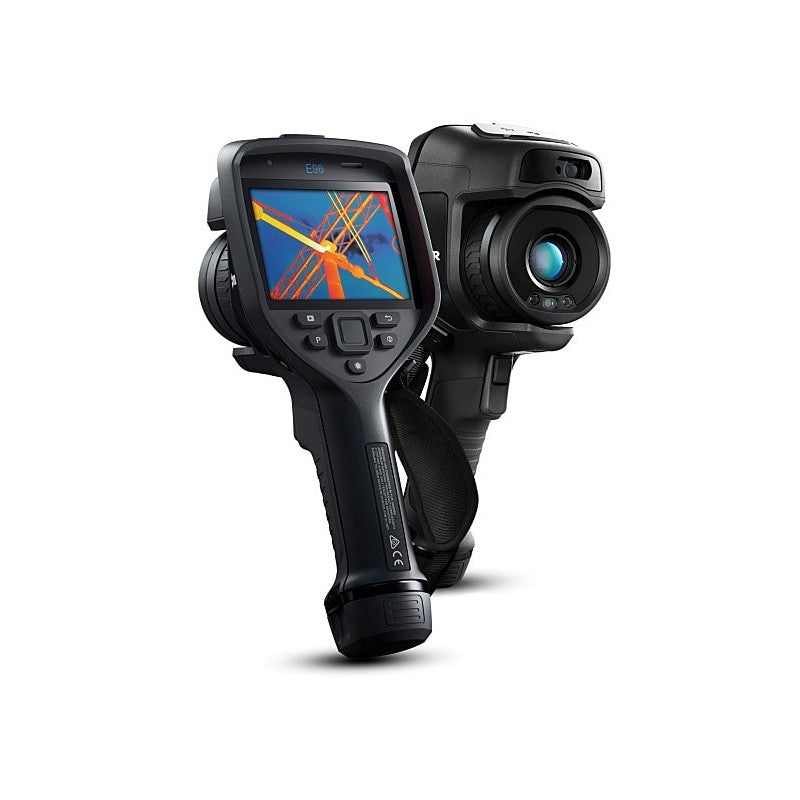

FLIR E96 Advanced Thermal Camera
REQUEST YOUR DISCOUNT CODE FOR THIS MODEL!!
The FLIR E96 is our first pistol-grip camera with 640 × 480 thermal resolution so inspectors can survey high-voltage, hazardous targets safely and quickly diagnose electrical and mechanical failures.
Choice of lenses available.
FLIR E96 Details
The FLIR E96 is our first pistol-grip camera with 640 × 480 thermal resolution so inspectors can survey high-voltage, hazardous targets safely and quickly diagnose electrical and mechanical failures.
Interchangeable AutoCal™ lenses offer complete coverage of near and distant targets, with the laser distance meter ensuring the crisp focus needed for accurate temperature measurement.
The on-board FLIR Inspection Route runs pre-planned routes to help inspectors stay organized when surveying large or multiple locations. FLIR Ignite provides automatic uploading of E96 images directly from the camera to the cloud for easy, secure storage and sharing.
| IR resolution | 640 × 480 pixels |
|
Resolution with UltraMax® enhancement |
1.2 megapixels |
| MSX® image enhancement | Yes: details from visual camera add depth and perspective |
| Built-in visual camera | 5 MP, fixed focus, with built-in LED light |
| Thermal sensitivity | <30 mK @ 30°C (86°F), 42° lens |
| Temperature range | -20°C to 120°C (-4°F to 248°F); 0°C to 650°C (32°F to 1202°F); 300°C to 1500°C (572°F to 2732°F) |
| Optional temperature range | - |
| Accuracy | ±2°C (±3.6°F) or ±2% of the reading |
| Focus modes | Continuous LDM, one-shot LDM, one-shot contrast, manual |
| Digital zoom |
1–8x continuous |
| Measurement tools |
3 spotmeters in live mode, 3 area meters in live mode |
| Measurement presets |
None, center spot, hot spot, cold spot, User Presets 1&2 |
| Available lenses |
14°, 24°, 42°, macro (2x) |
| Lens identification |
Automatic (FLIR AutoCalTM) |
| 1-Touch Level/Span |
Yes: automatic contrast enhancement |
| Laser pointer | Yes |
| Laser distance meter |
Yes |
| Area measurement information |
Yes |
| On-camera routing software |
FLIR Inspection RouteTM — enabled |
| On-camera report building | Voice annotation and GPS tagging to images and video; on-screen text; sketch on infrared images from touchscreen |
| FLIR software integration | FLIR Thermal Studio Starter, FLIR Thermal Studio, FLIR Thermal Studio Pro, FLIR Research Studio |
| Radiometric JPEG | Yes |
| IR, radiometric, visual video recording | Yes |
| IR, radiometric, visual video streaming | Yes, over UVC (radiometric, non-radiometric, visual) and Wi-Fi (non-radiometric, visual) |
| Communication modes | USB 2.0, Bluetooth®, Wi-Fi, DisplayPort |
| METERLiNK® | Yes |
| Display | 640 × 480 pixels (VGA) Dragontrail® touchscreen |
| Drop-testing | 3 m (6.6 ft) |
| Battery operation time | >2.5 hours, typical use |
